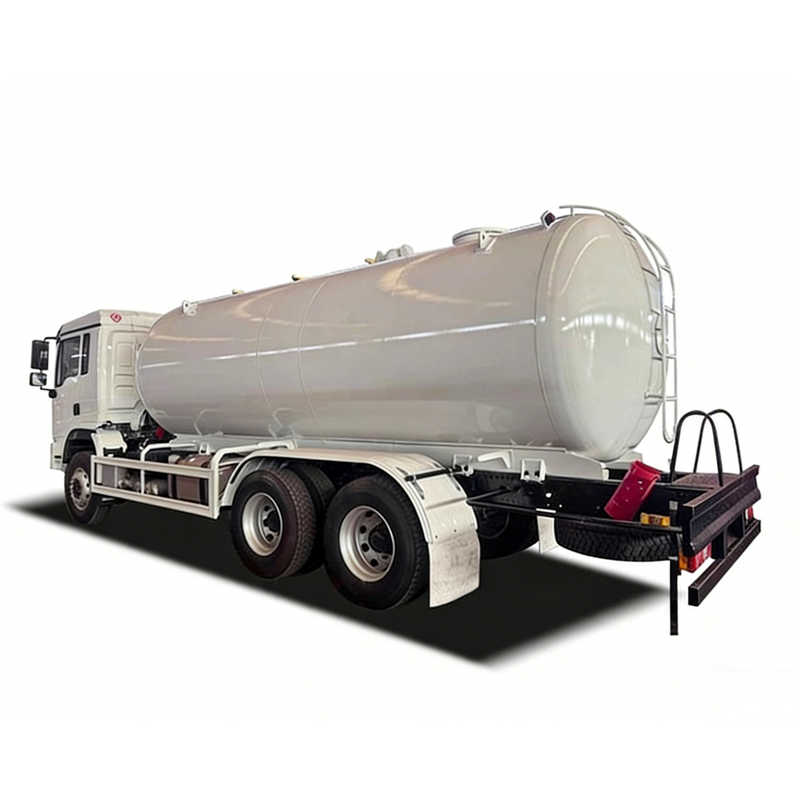

1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.
2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.
3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.
4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

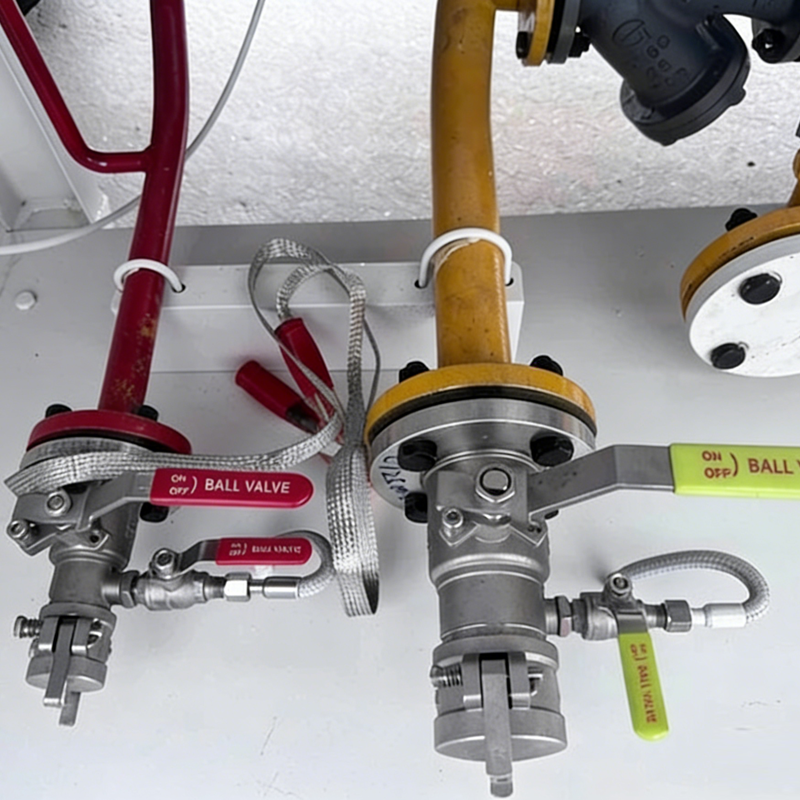

5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
| ITEM | PARAMETER |
| Chassis Technical Parameters | |
| Driving mode | 6X4 |
| Overall dimension | 950025503420mm |
| Gross weight | 25,000kg |
| Curb weight | 12,500kg |
| Payload | 10,000kg, 10tons |
| Wheelbase | 4375+1400mm |
| Cabin | SHACMAN L3000 flat top cab; |
| 2-3 seats with one sleeper; | |
| With air conditioning | |
| Engine - Brand | WEICHAI engine, |
| Engine - Horsepower | 270hp; |
| Engine - Emission standard | EuroII |
| Engine - Displacement | 7,800ml |
| Gear box | 8JS85T, 8 forward gears and 2 reverse |
| Max driving speed | 95km/h |
| Tyre | 12.00R20 (10pcs with 1 spare) |
| Front axle loading | 7,500kg |
| Rear axle loading | 13,000kg |
| Tank body parameters | |
| LPG tank volume | 20,000 liters |
| Tank material | Q345R |
| Tank diameter | 2,050mm |
| Tank thickness | 10mm |
| End plate | 10mm |
| Tank length | As designed |
| Gas phase | DN25 or DN50 or customized |
| Liquid phase | DN 50 or DN80 or customized |
| Filling gas | Propane (LPG) |
| Design pressure | 1.61Mpa |
| Hydraulic temperature | 2.21Mpa |
| Working temperature | -20~50℃ |
| Design code | GB150.1~2011 |
| Accessories | |
| Level gauge | Rochester Float ball type at the rear of tank |
| Safety valve | DN80*1 |
| Manhole | DN450 |
| Tool and valve box | Equipped |
| Radiator of hydraulic oil | Equipped |

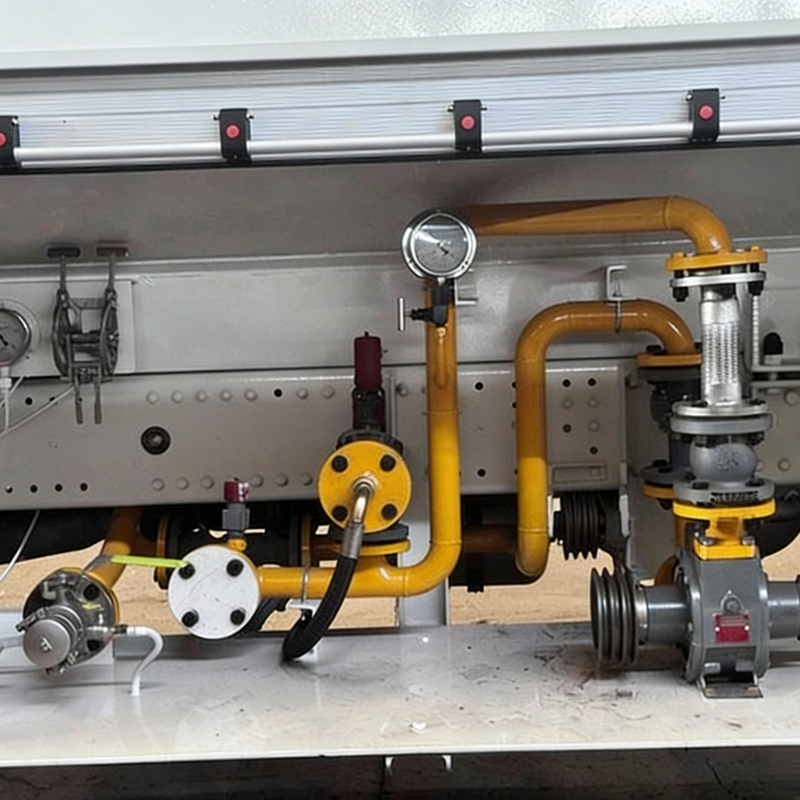

| LPG pump | USA brand CORKEN vane pump, driven by truck engine through PTO |
| Dispenser machine | Single nozzle with English remarks |
| Filling hose | 15 meters |
| Pressure gauge | One set |
| thermometer | One set |
| Emergency valve | Controlled valve box and installed at the rear of truck |
| Fender | Steel material |
| Fire extinguisher holder | Installed at left and right sides of rear truck *2 |
| Exhaust shaft | At the front of truck cabin for safety |
