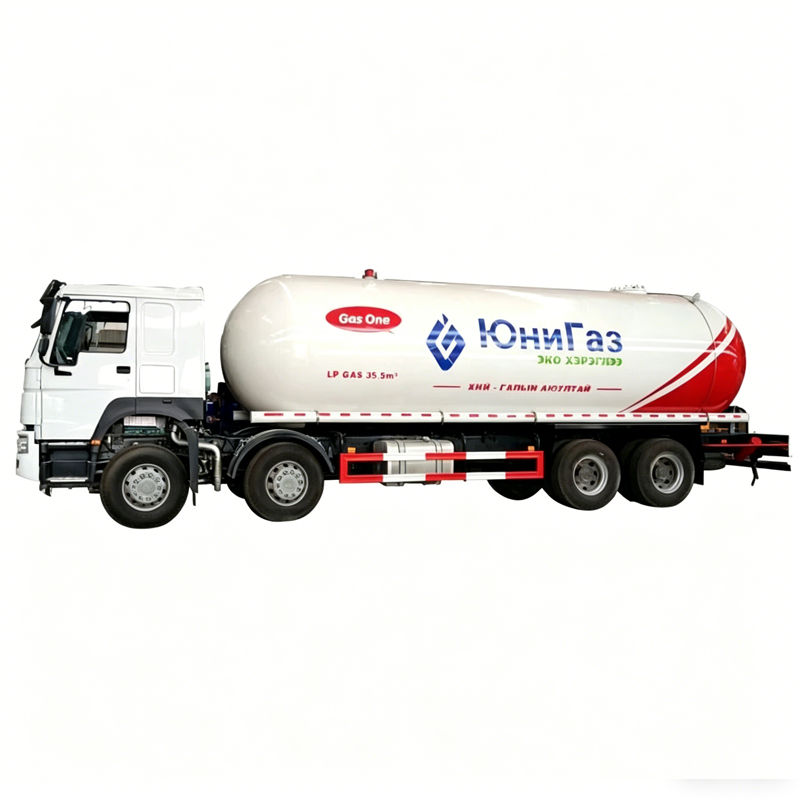

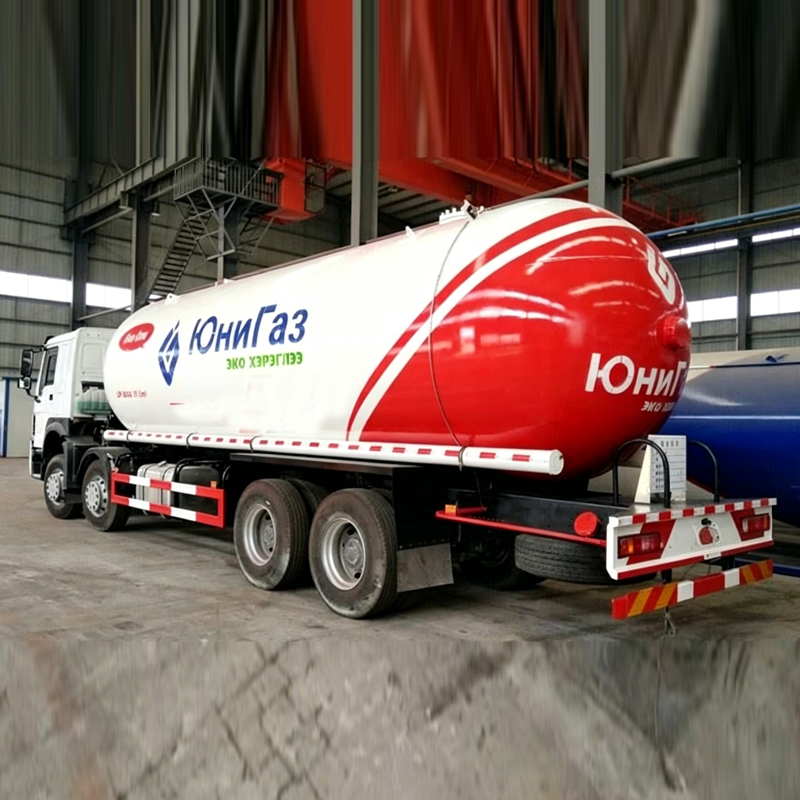

1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.
2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.
3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.
4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
| Item No. | Parameters |
|---|---|
| Chassis Parameters | |
| Overall Dimension | 11800x2490x3690mm |
| Driving Model | Left hand drive or Right hand drive |
| Gross Vehicle Weight | 31000 kg |
| Curb Weight | 14910kg |
| Payload | 15000kg~16000kg |
| Wheel Base | 1800+4600+1350 mm |
| Front/rear Tread | 2022/1830 mm |
| Approach/Departure Angle | 16/19 degree |
| Front Axle | HF9,9000kgX2 |
| Rear Axle | HC16,16000kgX2(Heavy duty design for rough road) |
| Engine | WD615.47,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower | 371HP EUROII |
| Displacement | 9760mL (Diesel) |
| Max Driving Speed | 95 km/h |
| Gearbox | HW19710 with HW70 PTO |
| Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
| Tire | 12R22.5 (12 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| LPG tank | |
| Volume: | 35500liters |
| Tank material: | Q345R |
| Tank diameter: | 2350mm |
| Tank thickness: | 10mm |
| End plate thickness: | 12mm |
| Tank length: | 8960mm or as designed |
| Gas phase | Flange type,DN50/2" or according to customer request |
| Liquid Phase | Flange type,DN50/2" or DNDN80/3" or according to customer request |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Testing pressure | 2.21Mpa |
| Refilling Accessory | |
| Chinese LPG Pump | Chinese brand YQ15-5Flow rate:15.5M3/H10 Mpa inlet pressure780 r/min for rotation speed |
| CORKEN LPG Pump(optional) | CORKEN pump Z2000EGAEEInlet 2" NPT and Outlet 2" NPTMax. RPM:800 |
| Radiator | 1 pc(to avoid high temperature of hydraulic oil during operation) |
| Hydraulic motor | 1 pc |
| Flow meter | English remarks with printer for receipt55~550 L/min2500Kpa(25 Bar) max. Working pressure |
| Filling hose | 15M |
| Filling nozzle(optional,not necessary) | REGO filling nozzle for small LPG tankOr home cylinder filling nozzle |
| Level Gauge | Chinese Float Ball type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | Located at side of LPG bobtail |
| Thermometer | 1 pc |
| Pressure Gauge | 2 pc |
| Emergency shut off Valve | 3 pcs with witch inside valve box and at rear of truck |
| Fender | Steel |
| Fire Extinguisher Holder | 2 sets |
| Anti Static line | 1 set |
