Product Name

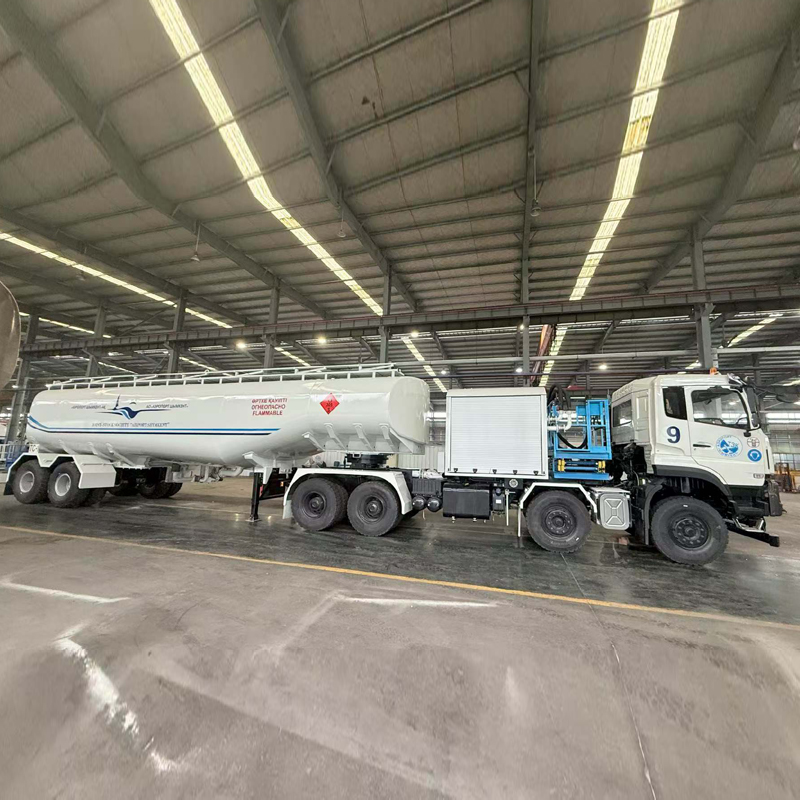

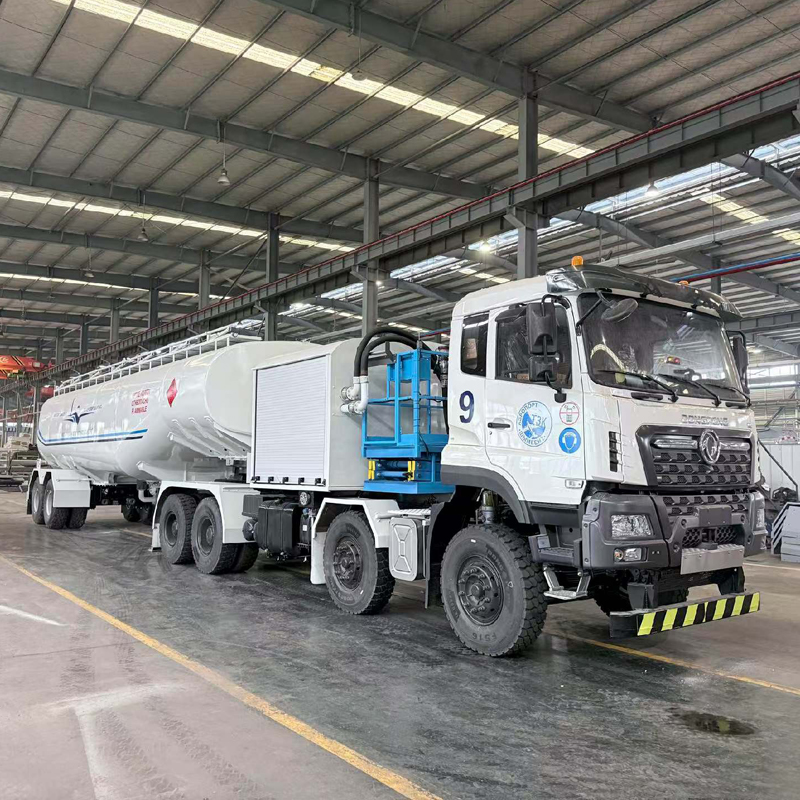

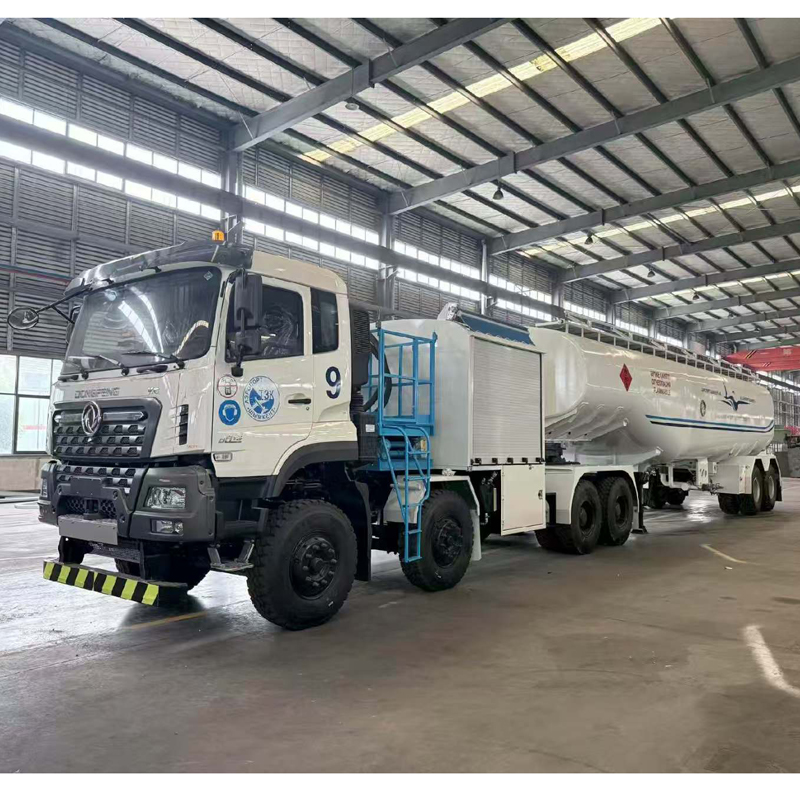

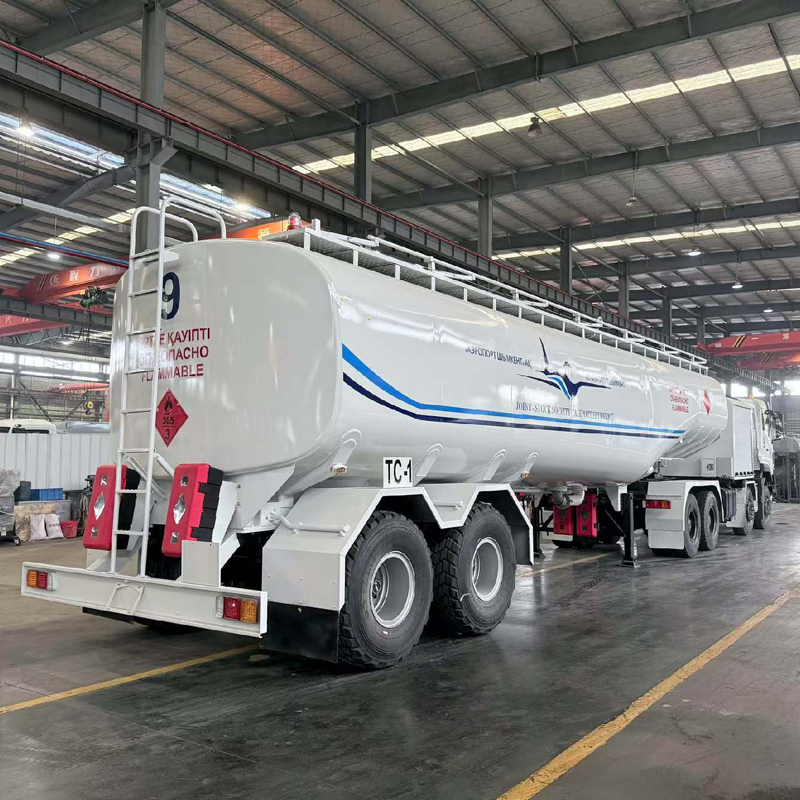

Aircraft refueling truck

Total mass (kg)

45000/49000

Curb Weight(Kg)

17000/19500

Boundary Dimension(mm)

13000/17500x2650x3480/3600

Tank Volume(m³)

35-60

Tank Thickness（mm）

6

Tank Body Material

Carbon steel/Aluminum alloy/Stainless

Compartment

2-6 As Customer Need

Operating Ambient Temperature（°C）

-20~50

Manhole Cover

European Standard

Emergency Shut Off Valve

Include

Oil Gas Recovery Unit

/

Anti-Overflow Alarm Device

Include

Fuel Loading method

Bottom Filling

Gear Oil Pump Flow(L/min)

2200-2600

Toolbox

As Required

[Chassis Technical Parameters]

Chassis Brand

DONGFEGN

Drive Form

8*4 LHD RHD Optional

Steering Device

Power steering ,hydraulic steering with power assistance

Wheelbase(mm)

2050+4000+1400

Engine Brand

dCi420-51

Power(kw)

308

Horse Power(HP)

420

Fuel Type

Diesel

Emission standard

Euro II, Euro III, Euro IV, Euro V, Euro VI available

Gearbox

12 Speed Manual

Front/Rear Axle(t)

7.5/15

Suspension

Multi Leaf Springs

Brake System

Front/Rear Drum Full Air Braking

Tires Spec

12.00R20

Cab Configuration

air conditioning, radio, MP3 and USB port,A

Others

2 sets of 4kg extinguishers

1 set of static belt

Level gauge

Flow meter

Colors and designs are customized to your specifications.
